FLA Series
F.L.A. 24200WG2
5kWh
Low Voltage
Up to 15 units in parallel
Wall or floor mounting
Integrated WiFi
Product Introduction

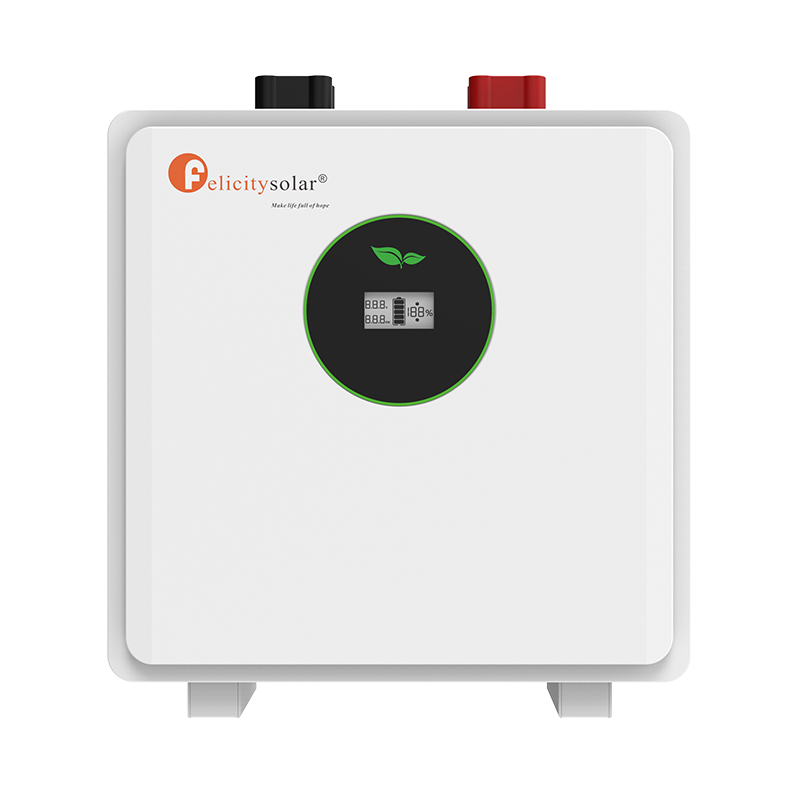

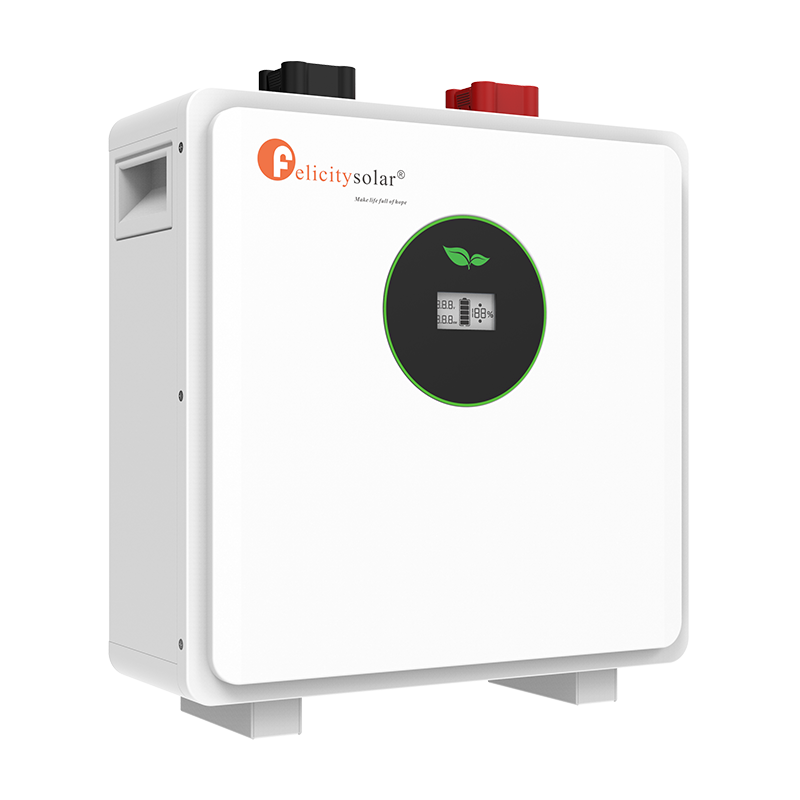

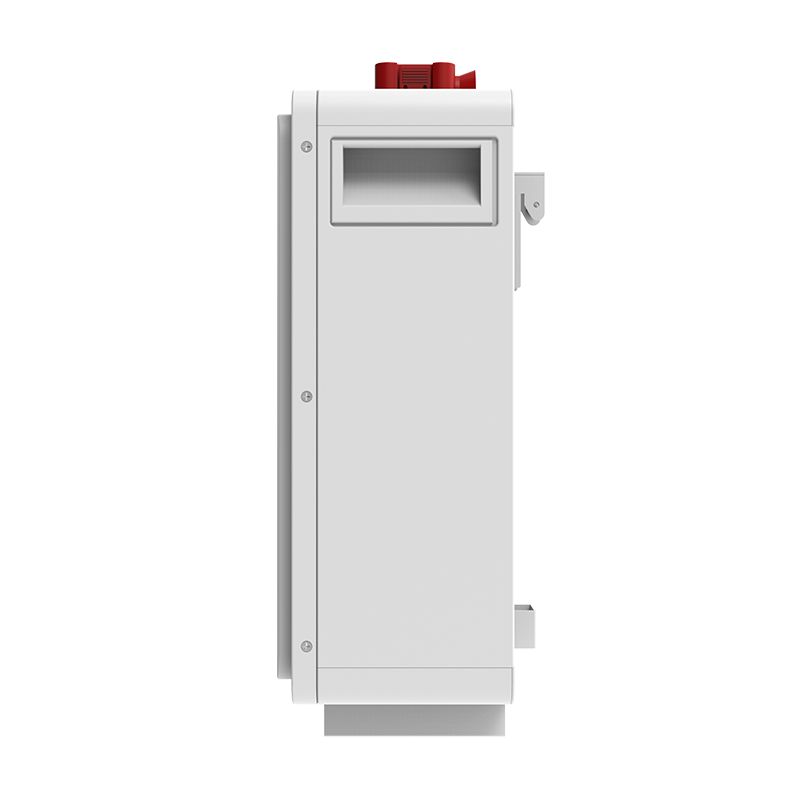

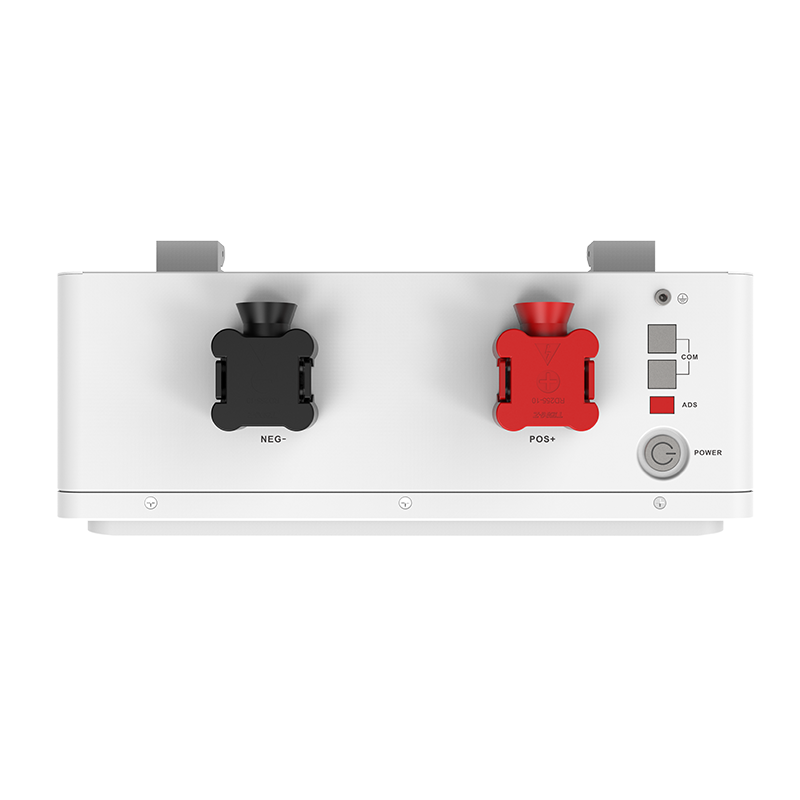

The FLA24200WG2 is equipped with a lithium ferro-phosphate (LiFePO₄) battery designed for residential use. Developed based on customer needs and market demands, this advanced energy storage solution offers a reliable, high-quality supply for various devices. The product features a long service life, excellent performance in high temperature environments and a compact design that requires minimal installation space.
The FLA24200WG2 incorporates an in-house developed battery management system (BMS). When connected to the electrical grid or a photovoltaic system, the unit stores energy through charging. In the event of a power outage from the grid or solar system, the battery independently supplies electricity to the home loads. Additionally, multiple units can be connected in parallel to form a high-capacity modular system, capable of meeting long-term storage needs.
The FLA24200WG2 incorporates an in-house developed battery management system (BMS). When connected to the electrical grid or a photovoltaic system, the unit stores energy through charging. In the event of a power outage from the grid or solar system, the battery independently supplies electricity to the home loads. Additionally, multiple units can be connected in parallel to form a high-capacity modular system, capable of meeting long-term storage needs.
Product Advantages
• LiFePO₄: Greater safety and longer useful life.
• Multiple Protection: Integrated smart BMS and fuse.
• Flexible Installation: Wall mount or floor mount.
• Wide Compatibility: Compatible with the main brands of inverters.
• High Scalability: Expandable capacity up to 75 kWh.
• Integrated WiFi/Bluetooth: Remote monitoring of battery bank data.
• Multiple Protection: Integrated smart BMS and fuse.
• Flexible Installation: Wall mount or floor mount.
• Wide Compatibility: Compatible with the main brands of inverters.
• High Scalability: Expandable capacity up to 75 kWh.
• Integrated WiFi/Bluetooth: Remote monitoring of battery bank data.
Model
FLA24200WG2
Operating voltage
22.4-28.8V
Energy
5kWh
Scalability
Up to 15 units in parallel (75kWh)
Depth of discharge (DOD)
≥95%
Life cycle
≥6,000 cycles
Communication
RS485/CAN
Protection level
IP21
Discharge
- [Certificate for Safe Transport of Goods by Road] FLS2F8802YL501 (FLA24200WG2)
- [Certificate for Safe Transport of Goods by Sea] FLS2F8802YM501 (FLA24200WG2)
- [Hazard and Classification Identification] FLS2F8802DI01 (FLA24200WG2)
- [Hazard Information Label] FLS2F8802P01 (FLA24200WG2)
- [MSDS] FLS2F8802SDS01 (FLA24200WG2)
- [UN38.3 TEST REPORT] FLS2F8802U01 (FLA24200WG2)
- [UN38.3 TEST Summary] FLS2F8802G01 (FLA24200WG2)
