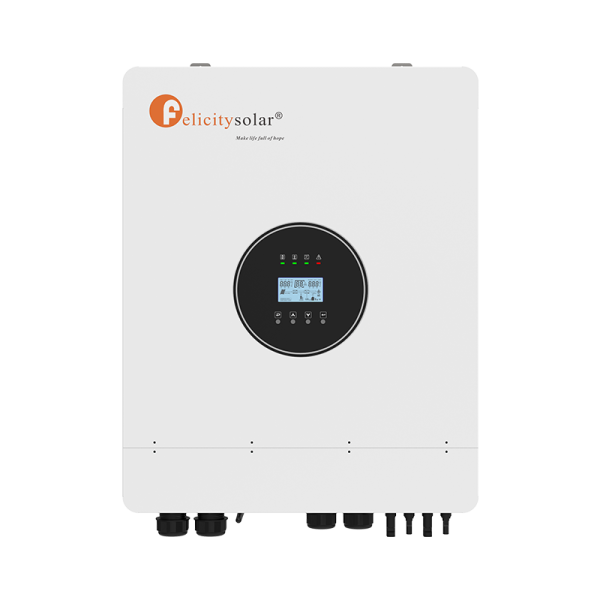

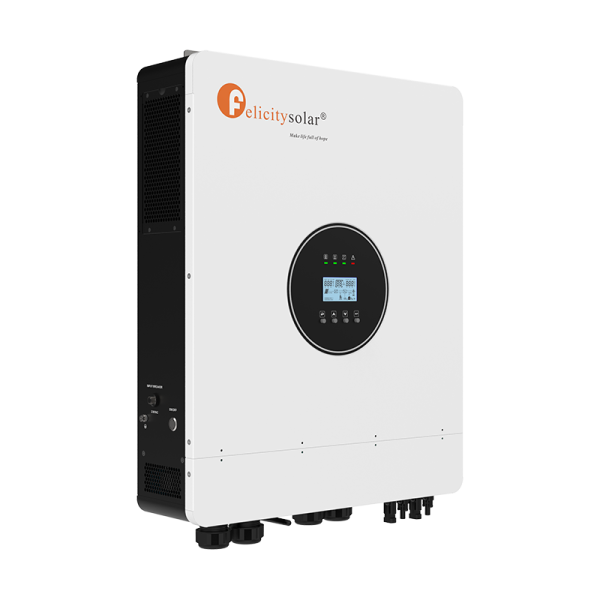

IVEM Series
IVEM 8~12kW-II
8~12kW
Low Voltage
High Frequency
Off Grid
Monophase
Three-phase (minimum 3 units)
Product introduction
This is a multifunctional inverter/charger that combines the functions of an inverter, MPPT solar charger and battery charger to offer uninterrupted power supply in a compact format. Its full LCD screen allows easy configuration using buttons, including parameters such as battery charging current, AC/solar charging priority and acceptable input voltage according to different applications.
Product advantages
● Integrated MPPT solar charge controller (supports 2 solar input strings)
● Integrated Wi-Fi for mobile monitoring (requires APP)
● Mains or generator compatible
● Generator input port can be converted into smart output port
● Smart output port allows custom output duration
● Automatic restart when AC power is restored
● Overload/overtemperature/short circuit protection
● Lithium battery activation function
● Cold start function
● Integrated Wi-Fi for mobile monitoring (requires APP)
● Mains or generator compatible
● Generator input port can be converted into smart output port
● Smart output port allows custom output duration
● Automatic restart when AC power is restored
● Overload/overtemperature/short circuit protection
● Lithium battery activation function
● Cold start function
| Model | IVEM8048-II | IVEM12048-II |
|---|---|---|
|
Rated output power |
8kW |
12kW |
|
Nominal DC input voltage |
48V |
|
|
Rated input voltage |
230Vac |
|
|
Input voltage range |
90-280Vac |
|
|
Intelligent charging maximum output current |
40A |
60A |
|
Maximum charging current |
150A |
240A |
|
Maximum input power |
10000W (5000W for single PV) |
15000 W (7500 W for single PV system) |
|
Rated output frequency (Hz) |
50±0.3Hz/60Hz±0.3Hz (Adjustable) |
|
|
Parallel Capability |
Yes, up to 6 units |
|
Discharge
IVEM8048-II：
IVEM12048-II：
