IVBM Series
IVGM 5~8kW-P1G1
5~8kVA
Low Voltage
Low Frequency
Hybrid Inverter
Monophase
Product Introduction

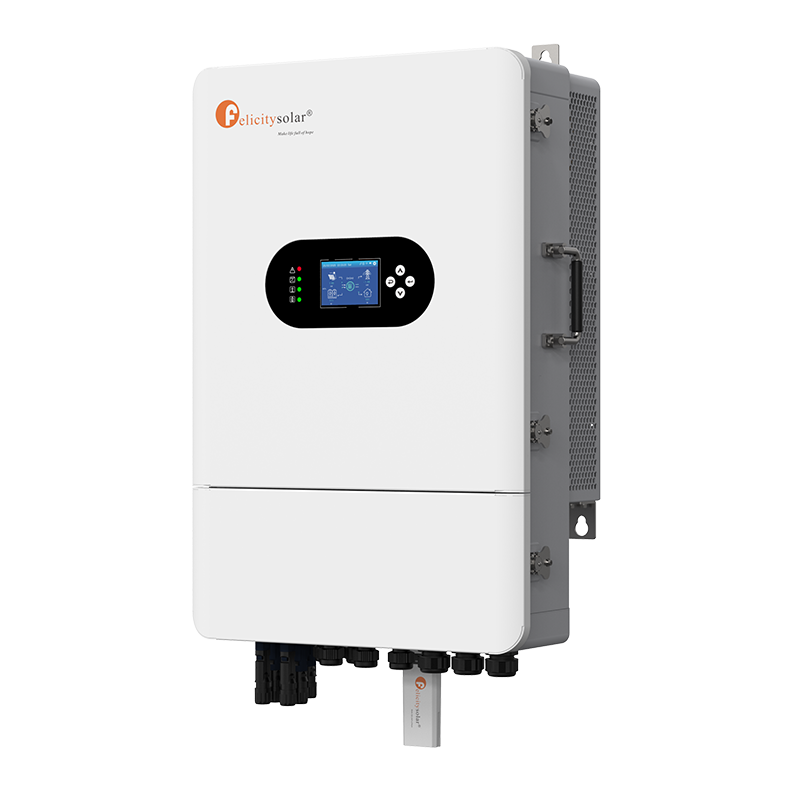

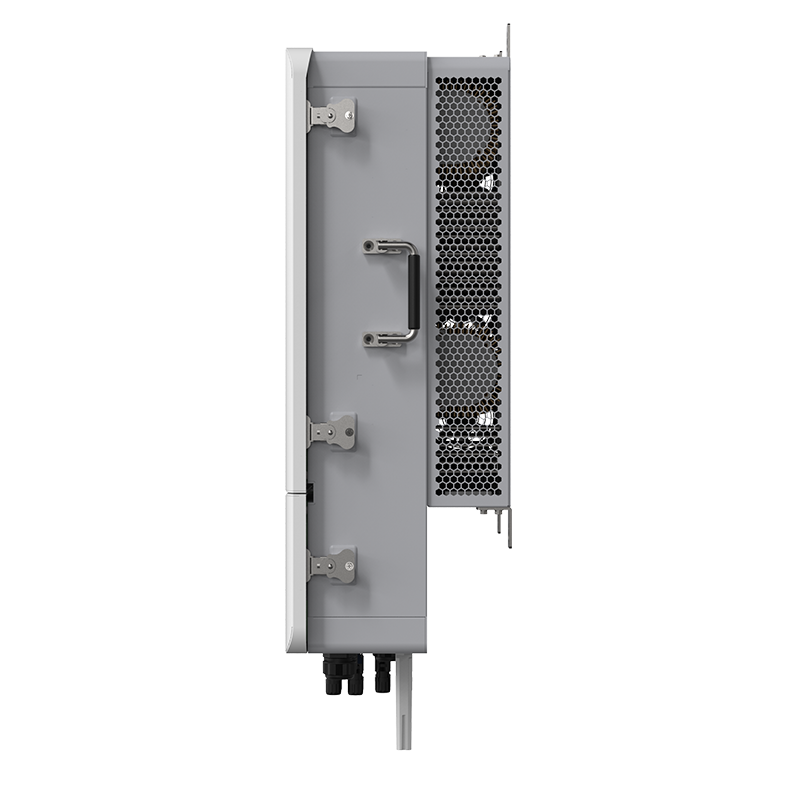

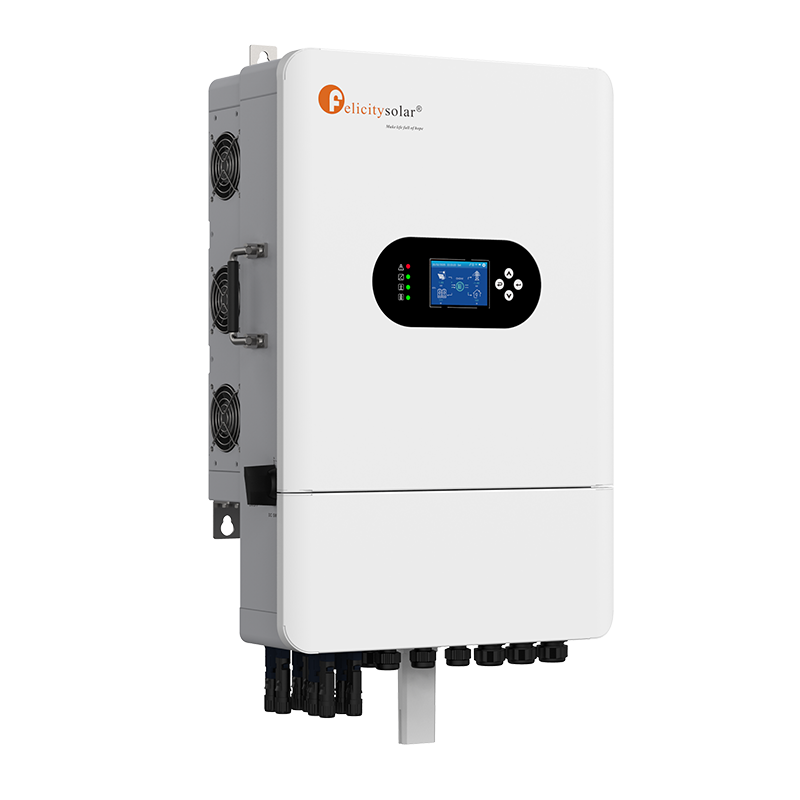

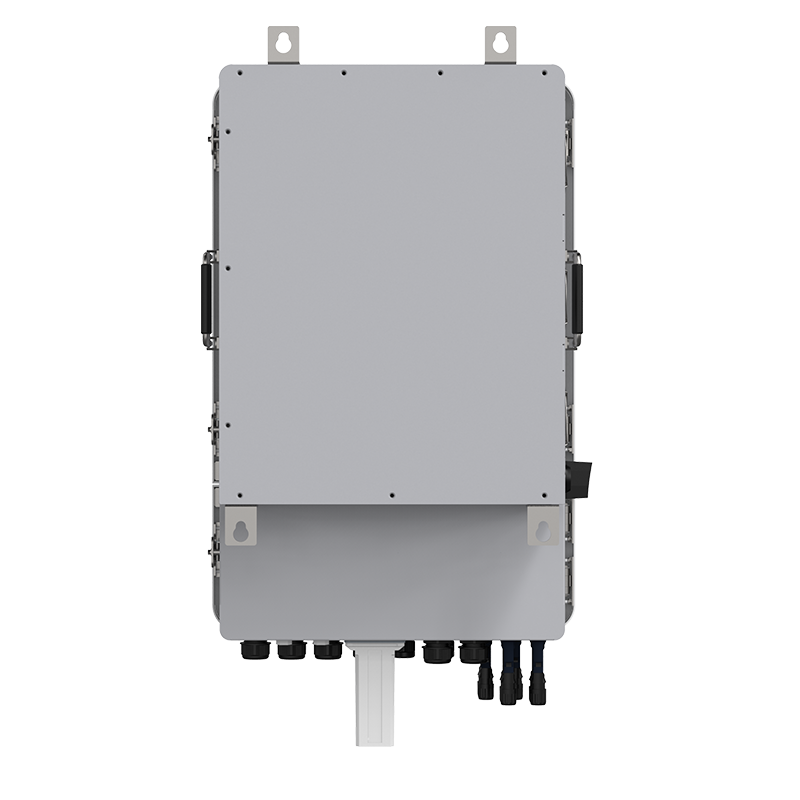

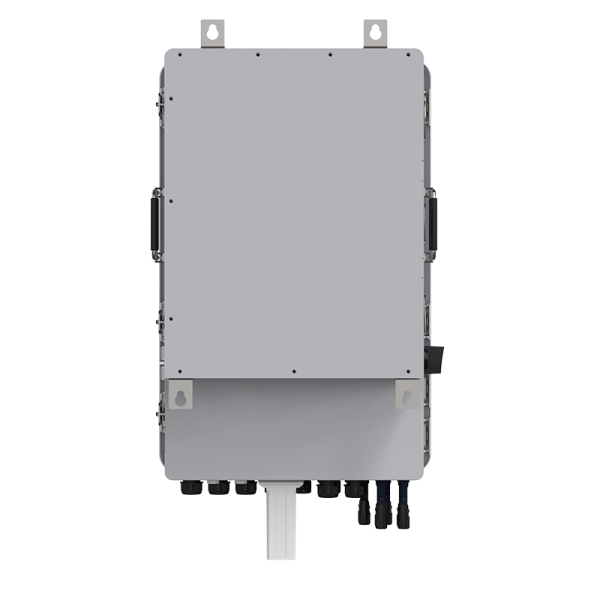

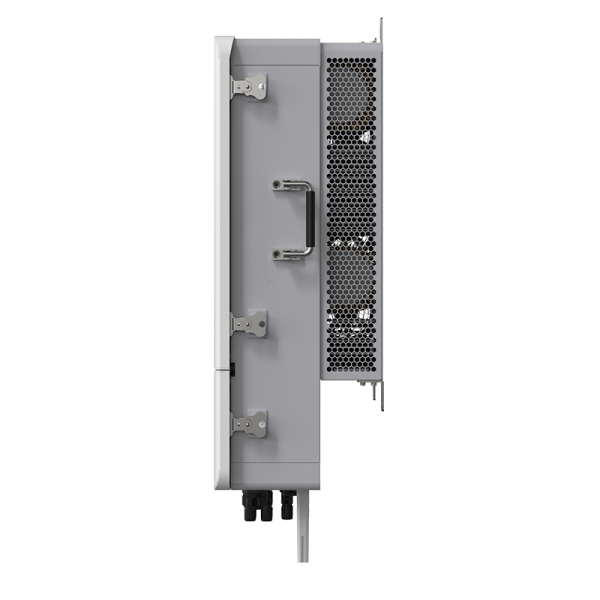

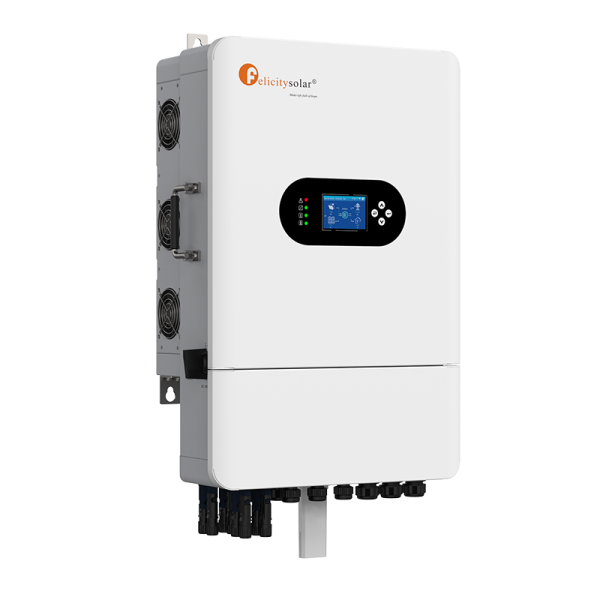

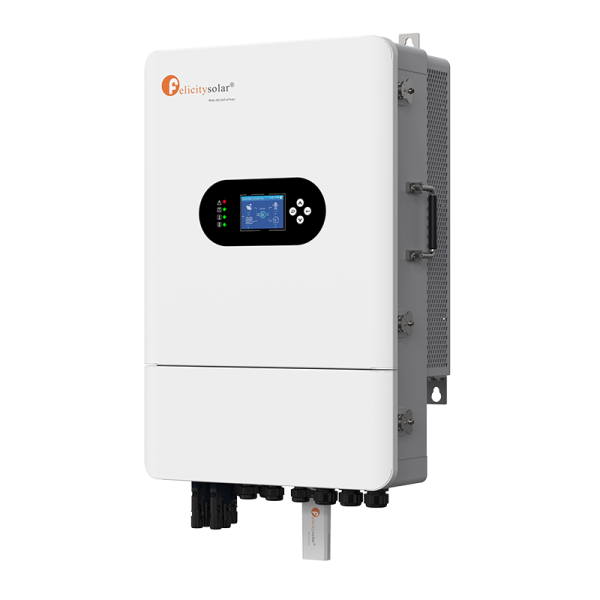

The Felicitysolar IVGM series is a multifunctional inverter that combines the functions of an inverter, solar charger and battery charger, offering uninterrupted power supply in a compact design. Its full LCD display allows for easy, user-configurable push-button operation, including functions such as battery charging, AC/solar charging, and setting acceptable input voltage for different applications.
Product Advantages

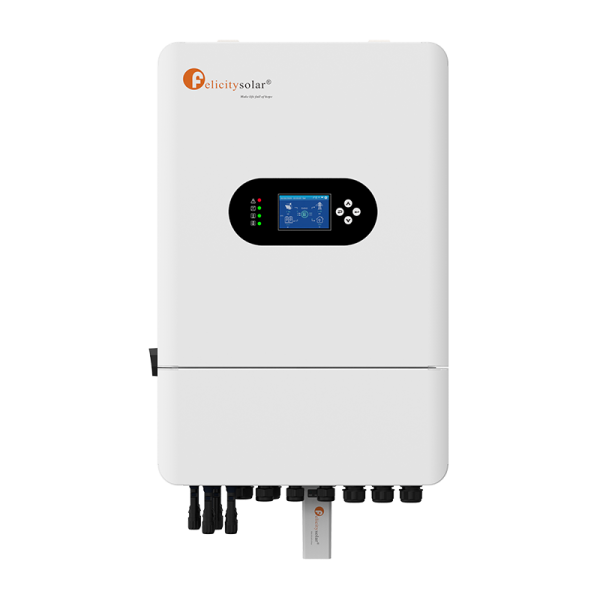

● 3.5 inch LCD touch screen.
● Parameters and operating modes configurable through the LCD screen.
● Compatible with WiFi monitoring and Fsolar Smart Cloud monitoring system.

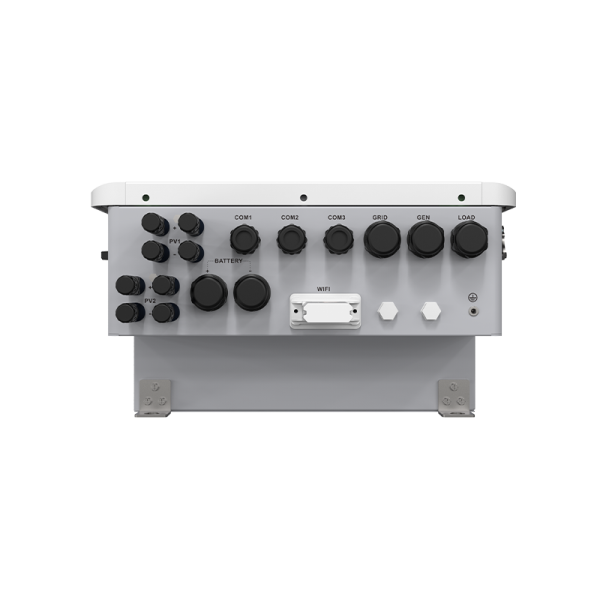

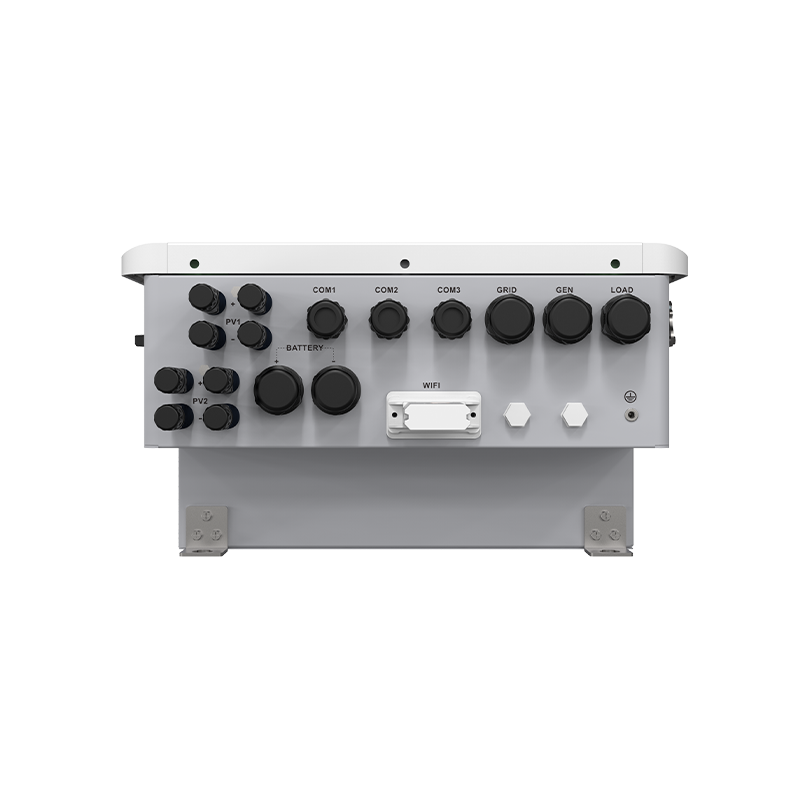

● 4 PV inputs, 2 MPPT, with 1.5 times oversizing capacity.
● Battery charging and discharging current up to 190A.
● Programmable generator port, compatible with smart loads and microinverters.
● Off-grid switching time of less than 10 ms, avoiding interruption of supply to critical loads.
● Compatible with parallel operation in single-phase and three-phase systems.
● Supports multiple operating modes: Time Of Use, Selling First, Zero Export To Grid Port and Zero Export To CT.
● Built-in limiting function to prevent excess power from being injected into the grid.
● Protection level IP65.
● Parameters and operating modes configurable through the LCD screen.
● Compatible with WiFi monitoring and Fsolar Smart Cloud monitoring system.
● 4 PV inputs, 2 MPPT, with 1.5 times oversizing capacity.
● Battery charging and discharging current up to 190A.
● Programmable generator port, compatible with smart loads and microinverters.
● Off-grid switching time of less than 10 ms, avoiding interruption of supply to critical loads.
● Compatible with parallel operation in single-phase and three-phase systems.
● Supports multiple operating modes: Time Of Use, Selling First, Zero Export To Grid Port and Zero Export To CT.
● Built-in limiting function to prevent excess power from being injected into the grid.
● Protection level IP65.
| model | IVGM5KLP1G1 | IVGM6KLP1G1 | IVGM7K6LP1G1 | IVGM8KLP1G1 |
|---|---|---|---|---|
|
Battery voltage range |
40V~60V |
|||
|
Maximum charge and discharge current |
120A/120A |
135A/135A |
190A/190A |
190A/190A |
|
Maximum charging and discharging power |
5000W |
6000W |
7600W |
8000W |
|
Battery Type |
Li-Ion/Lead-acid |
|||
|
Load curve |
3 Stages / Equalization |
|||
|
Charging strategy for lithium ion batteries |
Self-adaptation to the BMS |
|||
|
Maximum recommended photovoltaic power |
7500W |
9000W |
11400W |
12000W |
|
Protection degree |
IP65 |
|||
|
Warranty |
10 years |
|||
Discharge
