T-REX Series
T-REX -10KLP3G01
10kW
Low Voltage
2MPPTs
IP65
Three-phase
Product Introduction

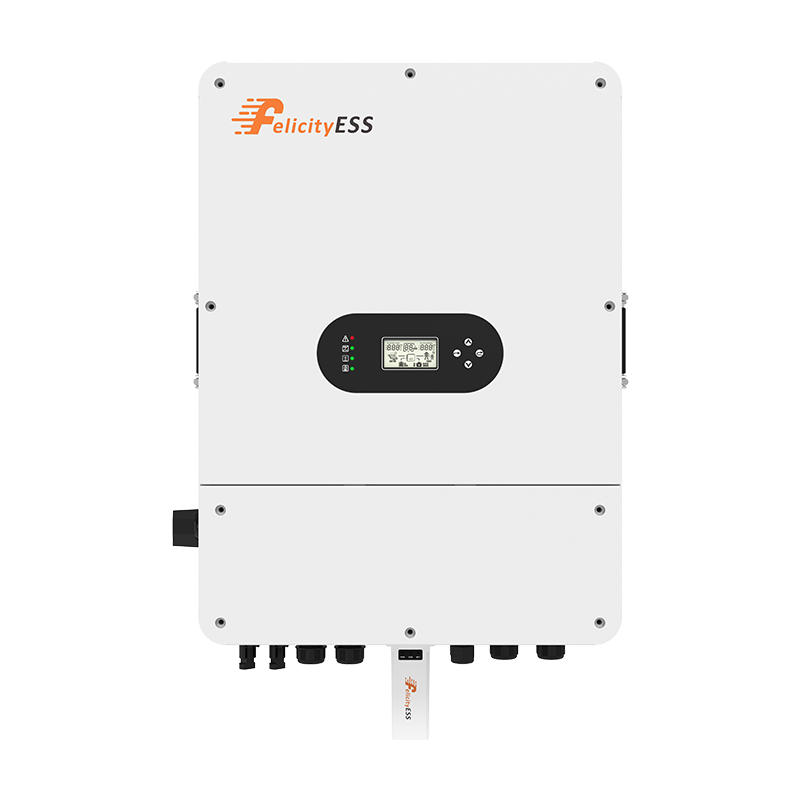

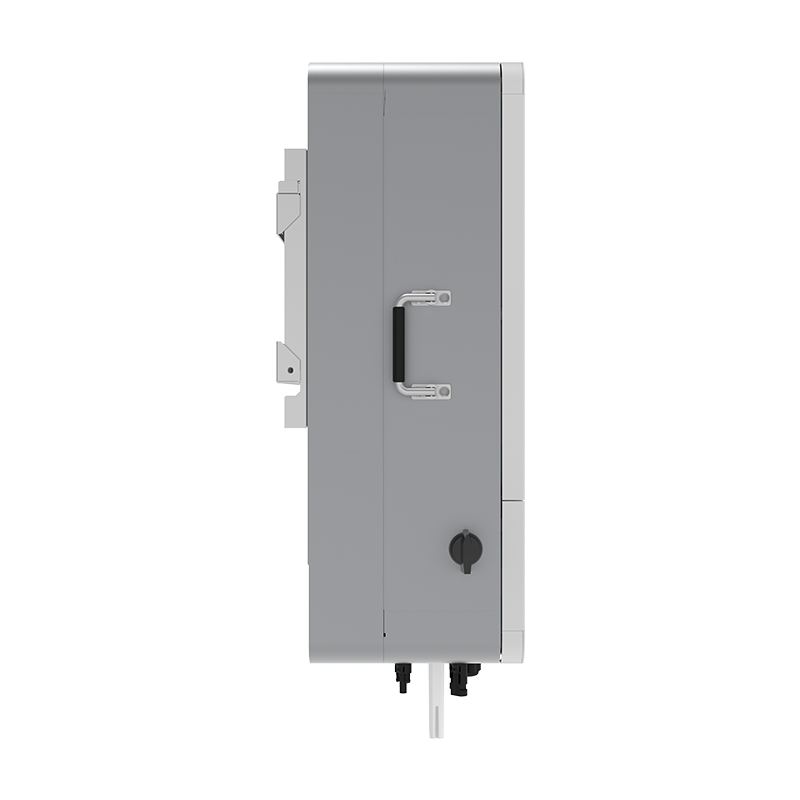

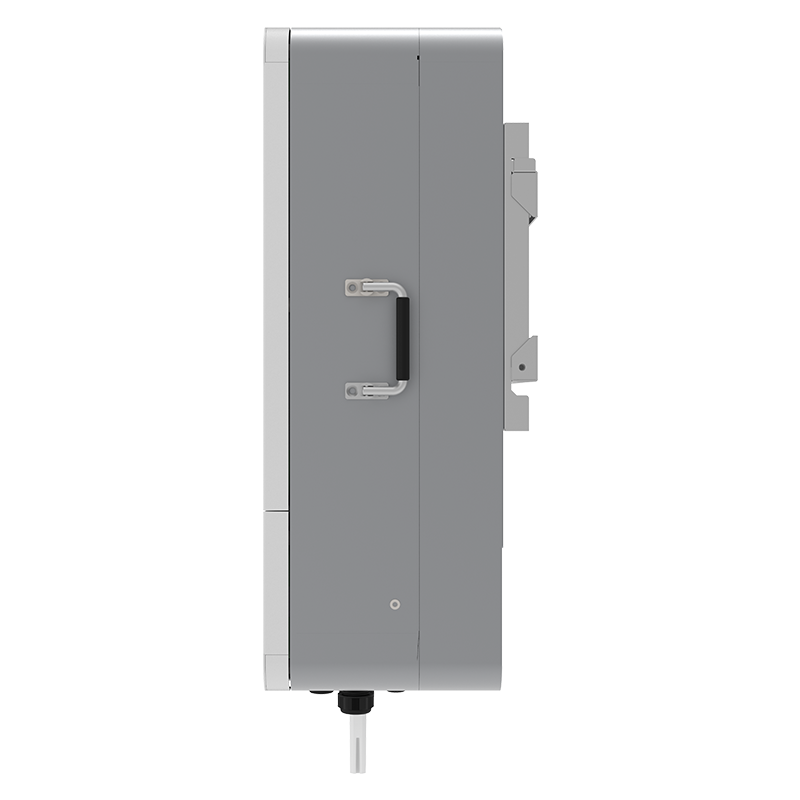

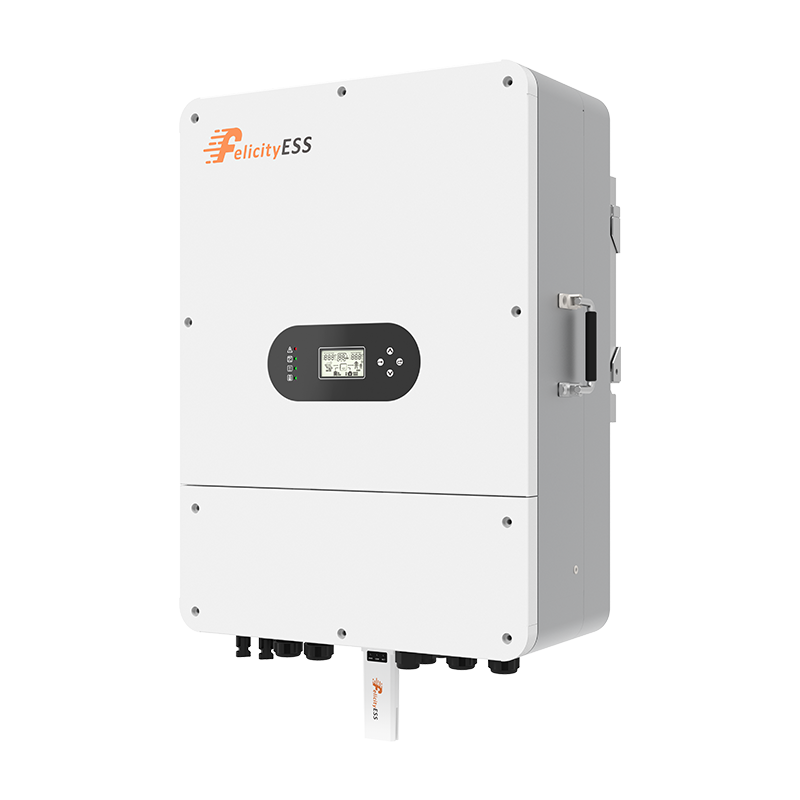

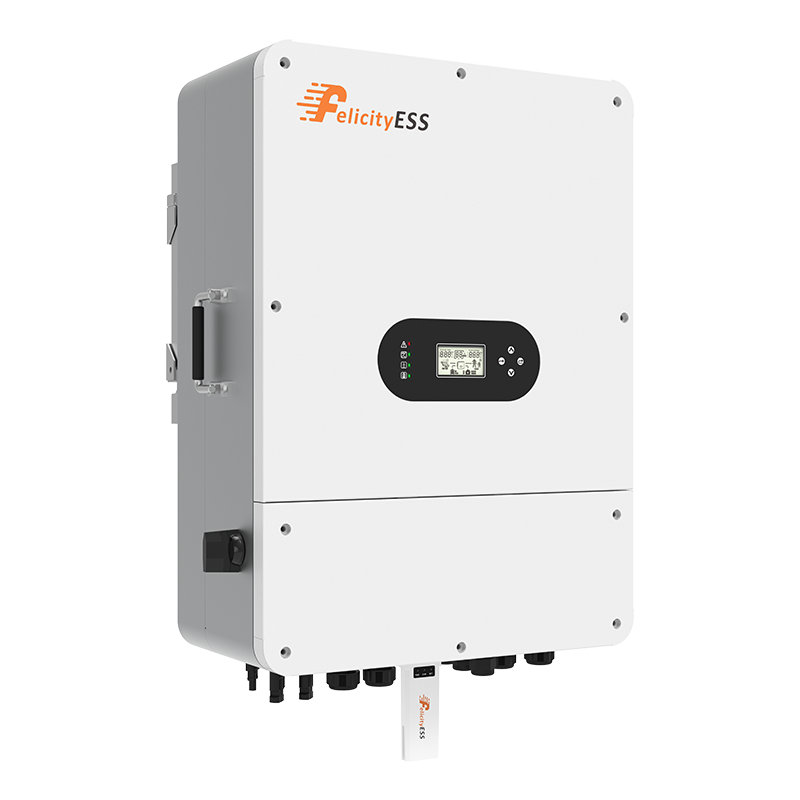

FelicityESS T-REX-10KLP3G01 is a multifunctional inverter that combines the functions of an inverter, solar charger and battery charger, providing uninterrupted power supply in a compact design. Its complete LCD screen allows simple and user-configurable operation using buttons, including functions such as battery charging, AC/solar charging and acceptable input voltage configuration, according to different applications.
Product Advantages
• Three-phase 230/400 Vac output.
• Self-consumption and injection into the network.
• Auto restart function available.
• Programmable supply priority for solar, battery or grid power.
• Multiple programmable operation modes: connected to the network (On-grid), off-grid (Off-grid) and backup.
• Power limiting function to prevent excess power from being injected into the grid.
• Compatible with WiFi monitoring.
• 2 MPPT followers, 1 chain for each MPPT.
• 1 battery input connection port.
• Wide battery voltage range (40V~60V), with maximum charge and discharge current of 200A.
• Compatible with energy storage from diesel generator.
• Off-network switching time less than 20 ms.
• Compatible with multiple operating modes: General mode, Backup mode, ECO mode, Zero Export To Load and Zero Export To CT.
• IP65 protection level.
• Self-consumption and injection into the network.
• Auto restart function available.
• Programmable supply priority for solar, battery or grid power.
• Multiple programmable operation modes: connected to the network (On-grid), off-grid (Off-grid) and backup.
• Power limiting function to prevent excess power from being injected into the grid.
• Compatible with WiFi monitoring.
• 2 MPPT followers, 1 chain for each MPPT.
• 1 battery input connection port.
• Wide battery voltage range (40V~60V), with maximum charge and discharge current of 200A.
• Compatible with energy storage from diesel generator.
• Off-network switching time less than 20 ms.
• Compatible with multiple operating modes: General mode, Backup mode, ECO mode, Zero Export To Load and Zero Export To CT.
• IP65 protection level.
Model
T-REX-10KLP3G01
Mac recommended photovoltaic power
13000W
bat voltage
40V~60V
Number of MPPT trackers/Number of chains per MPPT
2/2
Phase
Three-phase
Protection degree
IP65
Certification
VDE4105; G99/1; IN; CEI; ACE; NRS
